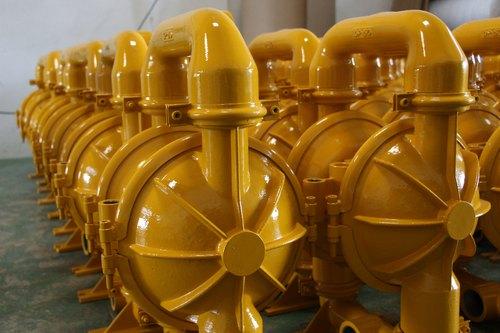

- Bơm màng thân nhôm - Aluminum Diaphragm Pumps
- Mã sản phẩm: TR-01AL
Bơm màng hoạt động bằng khí nén 1"
Hiệu : Terryair - India
Model : DP25ALT-CG
Màng bơm,bi /đế bi :Teflon
Thân bơm vật liệu : Nhôm
Lưu lượng max : 7.2 M3/ hour
Air inlet/outlet: 1/4" / 1/2"
Áp suất max : 8.6 bar (125 PSI )
Cổng hút /xả : 1” BSPT
Xuất xứ : India
- Liên hệ
Product Details:
| Weight | 116 lbs |
| Max Discharge | 840 liters/min |
| Size (Height x Width x Depth) | 31.9 |
We are offering Pneumatic Aluminum Diaphragm Pumps to our clients.
Specifications:
|
Model |
DPB12ALN |
DP25ALN |
DP40ALN |
DP50ALN |
DPB75ALN |
|
IMPA No. |
591605 |
591601 |
591602 |
591603 |
591604 |
|
Pump Size |
1/2” |
1” |
1-1/2” |
2” |
3” |
|
Standard Casing |
Aluminium |
||||
|
Water Inlet |
1/2” NPT / BSPT |
1” NPT / BSPT |
1-1/2 NPT / BSPT |
2” NPT / BSPT |
3” NPT / BSPT |
|
Water Outlet |
1/2” NPT / BSPT |
1” NPT / BSPT |
1-1/4 NPT / BSPT |
2” NPT / BSPT |
3” NPT / BSPT |
|
Suction Lift |
4” Dry |
17” Dry |
18” Dry |
21” Dry |
18” Dry |
|
30” Wet |
31” Wet |
28” Wet |
31” Wet |
30” Wet |
|
|
Size (Height x Width x depth) |
8.8” x 8.2” x 4” |
11” x 10.5” x 7.3” |
17.4” x 15.4” x 11.2” |
26.3” x 15.9” x 13.5” |
31.9” x 17” x 11” |
|
Weight lbs |
13 |
26 |
38 |
72 |
|
|
Max Discharge |
50 liters/min |
114 liters/min |
260 liters/min |
600 liters/min |
|
