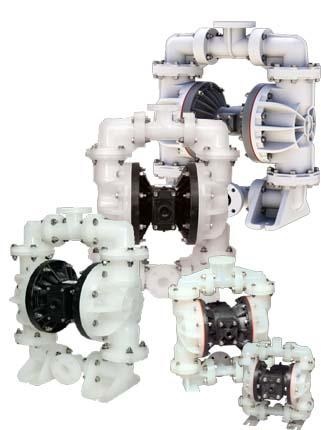

Bơm màng thân nhựa - Plastic Diaphragm Sandpiper Pumps
- Bơm màng thân nhựa - Plastic Diaphragm Sandpiper Pumps
- Mã sản phẩm: SP-20PP

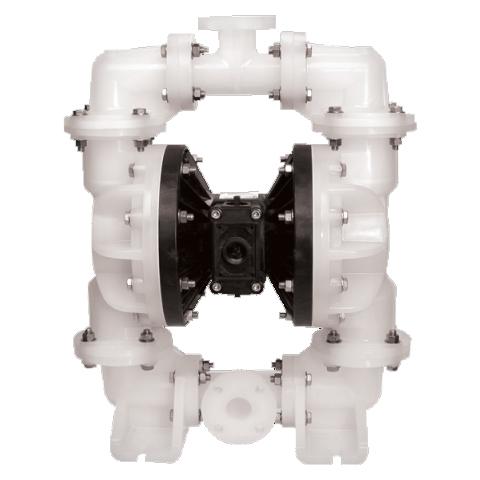

Bơm Sandpiper S20B3P2PPUS000
Thông số kỹ thuật:
Thân Bơm : nhựa Polypropylene (PP)
Diaphragm : PTFE@Teflon
W/ santo back up
Air Valve : Polypropylene
Valve Ball : PTFE @ Teflon
Valve Seat : Polypropylene (PP)
Valve seat O-ring : PTFE
Lưu Lượng max : 36.3 M3/ hour
( 605 lit/phut )
Chất rắn dẫn động : 17 mm (0.66 ”)
Áp Suất đẩy Max : 7 bar ( 100 Psi )
Áp suất khí cung cấp max : 7 bar( 100 Psi )
Đường khí vô: ¾’ (20mm)
Cổng hút, xả : 2 ” ANSI Flange
Bơm tự mồi sâu: 5 m 20
Origin : USA manufactured by Warren Rupp sản xuất
- Liên hệ
Chi tiết sản phẩm
Specifications
Port Size
2" ANSI Flange
Capacity
0 to 160 gpm (605 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to .66" (17 mm)
Heads Up To
100 psi or 231 ft. of water (7 bar or 70 meters)
Displacement/Stroke
0.46 gallons (1.73 liters)
Max Operating Pressure
100 psi (7 bar)
Shipping Weight
Polypropylene: 95 lbs. (43 kg)
PVDF: 130 lbs. (59 kg)
Port Size
2" ANSI Flange
Capacity
0 to 160 gpm (605 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to .66" (17 mm)
Heads Up To
100 psi or 231 ft. of water (7 bar or 70 meters)
Displacement/Stroke
0.46 gallons (1.73 liters)
Max Operating Pressure
100 psi (7 bar)
Shipping Weight
Polypropylene: 95 lbs. (43 kg)
PVDF: 130 lbs. (59 kg)
